Abstract

Rheumatic heart disease (RHD) is a neglected tropical disease despite the substantial global health burden. In this study, we aimed to develop a lower cost method of modeling aortic blood flow using subject-specific velocity profiles, aiding our understanding of RHD's consequences on the structure and function of the ascending aorta. Echocardiography and cardiovascular magnetic resonance (CMR) are often used for diagnosis, including valve dysfunction assessments. However, there is a need to further characterize aortic valve lesions to improve treatment options and timing for patients, while using accessible and affordable imaging strategies. Here, we simulated effects of RHD aortic valve lesions on the aorta using computational fluid dynamics (CFD). We hypothesized that inlet velocity distribution and wall shear stress (WSS) will differ between RHD and non-RHD individuals, as well as between subject-specific and standard Womersley velocity profiles. Phase-contrast CMR data from South Africa of six RHD subjects with aortic stenosis and/or regurgitation and six matched controls were used to estimate subject-specific velocity inlet profiles and the mean velocity for Womersley profiles. Our findings were twofold. First, we found WSS in subject-specific RHD was significantly higher (p < 0.05) than control subject simulations, while Womersley simulation groups did not differ. Second, evaluating spatial velocity differences (ΔSV) between simulation types revealed that simulations of RHD had significantly higher ΔSV than non-RHD (p < 0.05), these results highlight the need for implementing subject-specific input into RHD CFD, which we demonstrate how to accomplish through accessible methods.

Introduction

Acute rheumatic fever followed by rheumatic heart disease (RHD) are conditions that may develop from untreated Group A β-hemolytic streptococcal pharyngitis [1,2], occurring commonly in low- to middle-income countries. RHD results from an auto-immune reaction from epitopes of streptococcus pyogenes cross-reacting with proteins in the heart, in patients with genetic susceptibility [2]. RHD is characterized by endocardial inflammation and valvular lesions which can lead to eccentric hypertrophy of the left ventricle [35]. Fibrotic stiffening and thickening of the valve occurs when the interstitial cells of the valve are stimulated due to a T-cell predominant immune response [6]. RHD valve lesions can cause stenosis or regurgitation in the mitral and aortic valves [68], which may eventually lead to heart failure. Heart failure is estimated to be present in 33–40% of individuals living with RHD [9,10], while other complications include strokes or atrial fibrillation [11,12], all of which can be exacerbated during pregnancy [1315]. The actual number of patients living with RHD might be much higher than the estimated 40 × 106 [12] due to subclinical cases [16]. Therefore, there remains an urgent need to further characterize RHD, find preventive solutions, and improve current treatments.

Valvular lesions in RHD are typically diagnosed using M-mode and Doppler transthoracic echocardiography through the quantification of leaflet thickness, shape, and flow across the valves over the cardiac cycle. Computed tomography, X-ray fluoroscopy, and cardiovascular magnetic resonance (CMR) may also be used to further diagnose RHD severity [7,17]. While mitral valve regurgitation and stenosis are the most prevalent valve lesions in RHD [18], aortic regurgitation (AR) and stenosis (AS) are also common. Due to substantial differences in age, disease pathology, and socioeconomic circumstances of the patients, treatment guidelines established for valve replacements in older populations with degenerative aortic valve disease are not relevant in patients with RHD [19,20]. RHD may also worsen during pregnancy, further complicating treatment plans for pregnant patients [14,15].

Valve lesion severity determines the type and level of intervention and is classified by measuring various parameters including valve area, regurgitant fraction, leaflet thickness, and pressure gradient across the valve [7,21]. It is important to characterize the severity of RHD on a patient-specific basis. In patients with AR and AS, eccentric hypertrophy of the left ventricle often develops [7,22] and in severe cases, dilation of the ascending aorta may occur [22]. To our knowledge, the hemodynamic effects of AR and AS in patients with RHD on the ascending aorta have not been characterized, although Swanson et al. recently published a computational fluid dynamics (CFD) pipeline using echocardiography for limited-resource settings [23]. Using CFD to study hemodynamics is a well-established approach that has the potential to improve risk assessment and guide surgical intervention in patients with cardiovascular disease [24].

A common assumption in CFD simulations is a generic velocity inlet profile (e.g., plug, parabolic, Womersley) [2527]. This assumption might be suitable for vessels with simple geometries, but complex flow is often observed in the thoracic aorta, particularly in the ascending region [28,29]. Morbiducci et al. quantified these flow differences between simulations using subject-specific MRI, plug profile, and an inlet flow extension, demonstrating inaccuracies from the idealized flow in shear and bulk flow structures [30]. Regarding the Womersley profiles, studies have shown that due to vessel wall deformation and aortic valve motion, these profiles may be poor estimates in this region of the aorta [31]. Recent studies investigating the effect of valve lesions on the ascending thoracic aorta have not specifically quantified the differences between subject-specific velocity profiles and generic profiles [3234]. Rather, these studies focus on differences between diseased and nondiseased states. There are also currently no studies specifically modeling subjects with aortic lesions caused by RHD, a condition that presents differently when compared to other forms of aortic stenosis and regurgitation [6,22].

Many studies of RHD have examined the effects of aortic valve lesions on the left ventricle, but have not extensively studied the effects on the thoracic aorta or investigated any trends between aortic biomechanics and the aortic valve, despite evidence that some patients do have mild aortic dilation [22]. Therefore, we present a study simulating hemodynamic effects of RHD using CFD and subject-specific velocity profiles with previously collected CMR data from Groote Schuur Hospital in Cape Town, South Africa. We hypothesized that there would be measured differences in estimated WSS, oscillatory shear index (OSI), and relative residence time (RRT) between subjects with RHD and non-RHD in the thoracic aorta. Furthermore, we aimed to quantify the differences between using subject-specific velocity profiles and Womersley velocity profiles. We also included a brief morphological evaluation that estimated the angle between the left ventricle and the ascending aorta. This metric may provide additional information on the effect of the aorta in RHD. By using half-Fourier acquisition single-shot turbo spin echo (HASTE) and phase contrast magnetic resonance imaging (PC-MRI) data, we demonstrated the feasibility of using routinely collected image data to gain a more comprehensive understanding of the biomechanical effects of RHD (Fig. 1).

Fig. 1

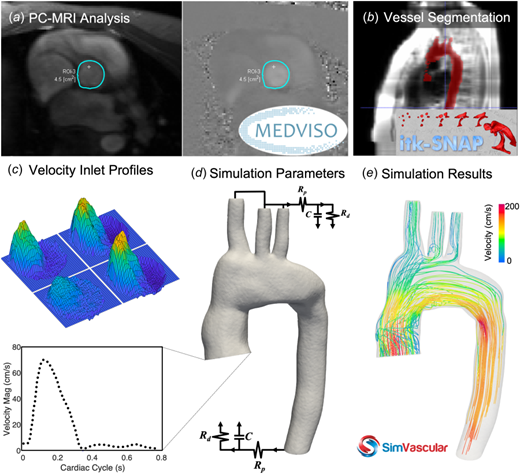

Study workflow diagram beginning with (a) PC-MRI analysis of the ascending thoracic aorta and (b)vessel segmentation, then (c) velocity inlet visualization and (d) estimating simulation parameters. Finally, (e) simulations were run and analyzed for all subjects (n = 6 for both groups). PC-MRI = phase-contrast magnetic resonance imaging; ROI = region of interest; Rp = proximal resistance; Rd = distal resistance; and C = compliance.
Fig. 1
Study workflow diagram beginning with (a) PC-MRI analysis of the ascending thoracic aorta and (b)vessel segmentation, then (c) velocity inlet visualization and (d) estimating simulation parameters. Finally, (e) simulations were run and analyzed for all subjects (n = 6 for both groups). PC-MRI = phase-contrast magnetic resonance imaging; ROI = region of interest; Rp = proximal resistance; Rd = distal resistance; and C = compliance.
Close modal

Methods

Study Population and Demographics.

We used previously collected CMR data from 12 subjects (power analysis: α=0.05,β=0.15) at the Cape Universities Body Imaging Center (CUBIC, Faculty of Health Sciences, University of Cape Town, Cape Town, South Africa) that we selected from 43 subjects with RHD and 28 control subjects without RHD. Written informed consent was obtained from all subjects, which was approved by the Human Research Ethics Committee in the Faculty of Health Sciences at the University of Cape Town. The study was carried out in accordance with the Declaration of Helsinki, International Code on Harmonization—Good Clinical Practice and South African Good Clinical Practice 2006 guidelines. The subjects were both male and female, ages 21 to 44 yrs, and have varying BMIs and ethnicities. Each control subject is age- (±3 yrs) and sex-matched. Subjects with RHD had mixed mitral and aortic valve disease with stenosis and regurgitation ranging in severity on a scale of one to three (one = mild, two = moderate, three = severe) as noted in Table 1. Severity was determined using the European Society of Cardiology and American Heart Association Guidelines [35], using parameters including valve area, aortic jet velocity, mean pressure gradient, and pulmonary artery pressure.

Table 1

Demographics, aortic dimensions, and valve pathology in subjects and matched controls

RHD (n = 6)Control (n = 6)
Demographics
Sex (M/F)3/33/3
Age (years)36±8.435.5 ± 8.6
BMI26.7 ± 4.326.4 ± 1.7
Aortic dimensions (mm)
STJ28±6.424.3 ± 3.0
Sinus27.3 ± 4.026.7 ± 2.7
ATA26±9.325.5 ± 4.5
Valve pathology
MS/MR1.67/2.0
AS/AR1.67/2.0
RHD (n = 6)Control (n = 6)
Demographics
Sex (M/F)3/33/3
Age (years)36±8.435.5 ± 8.6
BMI26.7 ± 4.326.4 ± 1.7
Aortic dimensions (mm)
STJ28±6.424.3 ± 3.0
Sinus27.3 ± 4.026.7 ± 2.7
ATA26±9.325.5 ± 4.5
Valve pathology
MS/MR1.67/2.0
AS/AR1.67/2.0

Note: BMI = body mass index; STJ = sinotubular junction; ATA = ascending thoracic aorta; MS/MR = mitral stenosis/mitral regurgitation; and AS/AR = aortic stenosis/aortic regurgitation.

Image Processing and Analysis.

We used previously acquired CMR images from a 3T Siemens Skyra magnet at CUBIC and pulse sequences with parameters highlighted in Table 2. The PC-MRI datasets were used to obtain the subject-specific velocity profiles and were processed using open-source software (Medviso Segment,2) [36]. To obtain geometry for our simulations, we used transverse and coronal HASTE scans, which can be quickly obtained for each subject. Due to the large slice thickness of 8 mm, it was not possible to accurately segment the aorta using one acquisition type. We therefore aligned and overlayed the transverse and coronal HASTE images, using a custom matlab code (MATLAB 2018a, The MathWorks, Inc., Natick, MA), to create an image with a new voxel size of 1.5625 mm3. We then used ITK-SNAP3 [37] to manually segment the aorta beginning a centimeter above the aortic valve and following the vessel around the arch and into the descending thoracic aorta, while also including the brachiocephalic, left common carotid, and left subclavian arteries. The segmentations were inspected for errors and exported as steriolithography files for the computational analysis. We used three-chamber view cine CMR scans of the left ventricle to estimate the angles between the ascending thoracic aorta (ATA) and left ventricle in two-dimensional (2D).

Table 2

MR image acquisition sequence parameters

Scan typeParameterValue
FOV (coronal)360 × 360 mm2
FOV (transverse)270 × 360 mm2
HASTEPixel spacing1.4063×1.4063 mm
Slice thickness8 mm
Number of slices35
TE/TR49/975 ms
Flip angle160deg
FOV (transverse)188 × 188 mm2
Pixel spacing1.5625×1.5625 mm
Phase contrastSlice thickness5 mm
TE/TR2.66/19.68 ms
Flip angle20deg
Venc200 cm/s
FOV (three-chamber)208 × 174 mm2
Pixel spacing1.7308×1.7308 mm
CineSlice thickness6 mm
TE/TR1.61/43.08 ms
Flip angle40deg
Scan typeParameterValue
FOV (coronal)360 × 360 mm2
FOV (transverse)270 × 360 mm2
HASTEPixel spacing1.4063×1.4063 mm
Slice thickness8 mm
Number of slices35
TE/TR49/975 ms
Flip angle160deg
FOV (transverse)188 × 188 mm2
Pixel spacing1.5625×1.5625 mm
Phase contrastSlice thickness5 mm
TE/TR2.66/19.68 ms
Flip angle20deg
Venc200 cm/s
FOV (three-chamber)208 × 174 mm2
Pixel spacing1.7308×1.7308 mm
CineSlice thickness6 mm
TE/TR1.61/43.08 ms
Flip angle40deg

Note: HASTE = half-Fourier acquisition single-shot turbo spin echo; FOV = field of view; TE = echo time; TR = repetition time; and Venc = velocity encoding.

To analyze the cine data, we used open source software, horos (Version 3.3.6) and the angle measurement tool. We based our method on a recent study by Roule et al. which looked at the angles between the ATA and the left ventricular outflow tract (LVOT) and left ventricle [38]. We estimated the planes from sagittal (three-chamber view) cine data. The ATA and LVOT planes were drawn parallel to the vessel walls, while the left ventricle plane was drawn from the apex to the center of the mitral valve. We performed this analysis on the 12 subjects in the study cohort as well as the entire CMR data collection (RHD: n =43, control: n =28).

Computational Fluid Dynamics.

We imported steriolithography files of the vessel geometries into simvascular (Version 2020.04.06) [39] and performed smoothing functions consistently across all 12 vessels to remove sharp edges and segmentation artifacts. After smoothing, we created a mesh using the meshing kernel, TetGen, which uses an adaptive meshing approach [39]. We conducted a mesh independence study to ensure that our velocity, wall shear stress, oscillatory shear index, and relative residence time values were not influenced by the mesh resolution. We used our case with the highest peak velocity to determine the optimal maximum mesh element size so that we could confidently apply that size across all subjects. Figure 2 below shows average velocity values of three probe locations in the ascending thoracic aorta over one cardiac cycle using six element sizes ranging from 0.07 to 0.27 cm. Based on these results, we concluded that a global maximum element size of 0.10 cm safely lies within a 5% margin of the average values computed using the finest mesh, without substantially increasing computational costs. We used meshing for the simulations with element sizes that do not exceed the chosen 0.10 cm. Furthermore, we incorporated boundary layer meshing along the wall with three layers to account for the higher velocity gradient in that region. The number of nodes (445,390 ± 141,977) and elements (2,663,721 ± 867,690) for each subject is shown in Supplemental Table 1, available in the Supplemental Materials on the ASME Digital Collection.

Fig. 2

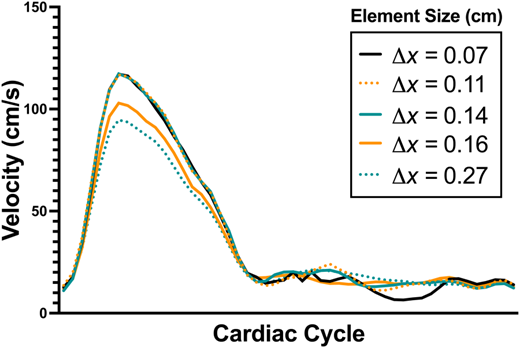

Mean velocity (cm/s) over one cardiac cycle at three probe locations in a representative vessel using six element sizes ranging from Δx=0.07−0.27 cm. Based on the plot above, we chose Δx=0.10 cm as the optimal core mesh resolution.
Fig. 2
Mean velocity (cm/s) over one cardiac cycle at three probe locations in a representative vessel using six element sizes ranging from Δx=0.07−0.27 cm. Based on the plot above, we chose Δx=0.10 cm as the optimal core mesh resolution.
Close modal
Next, we assigned boundary conditions. For this study, we specified the inlet boundary condition in two ways. The first way used a standard Womersley inlet velocity profile. Using Eq. (1), we estimated the spatial velocity profile for each subject, where the Womersley number, Wo, was calculated using vessel diameter, D, heart rate, f, dynamic viscosity, μf, and density of blood, ρf
(1)

We found the mean Womersley numbers to be 16.5  ±  3.5 and 15.8±3 at the inlet for RHD and control groups, respectively. We prescribed a flowrate over one cardiac cycle for each case using the mean values obtained from the PC-MRI analysis. This subject-specific flowrate waveform was then mapped to the inlet using the spatial velocity profile corresponding to the estimated Womersley number.

For the second set of simulations of each case, we applied a subject-specific velocity inlet profile obtained from our PC-MRI analysis. We kept the rest of the simulation parameters consistent, but instead of using mean flowrate data and Womersley spatial velocity distribution, we used subject-specific distribution. We aligned the inlet nodes to the inlets extracted from the PC-MRI data and assigned each node the corresponding PC-MRI velocity value at 50 time steps over one cardiac cycle. We took the Medviso Segment analysis mentioned previously and imported the results into a custom code in matlab (Version 2018a, The MathWorks, Inc., Natick, MA). This allowed us to replace the values in the Womersley profile distribution file with new PC-MRI values.

To estimate the outlet boundary conditions, we used the RCR Windkessel model and assumed a 1:10 standard ratio of proximal to distal resistance [39]. We prescribed subject-specific values for each subject at all branches including the brachiocephalic artery, left common carotid, left subclavian, and descending thoracic aorta. Age- and BMI-matched averaged blood pressure values were used to estimate the pressure variables in the boundary condition calculations. We estimated total vessel compliance, Ctotal, and total vessel resistance, Rtotal, using the following equations:
(2)
(3)

where ΔT represents the time from peak systole to end diastole, Qmax and Qmin are maximum and minimum flow rates, and Ps and Pd are systolic and diastolic pressures. Mean arterial pressure, MAP, divided by the mean inlet flowrate, Qin, was used to estimate resistance. simvascular was used to apply an automated flow split for the resistance and compliance values between all outlets. Mean outlet boundary condition values are listed in Table 3 for both groups.

Table 3

Mean values of the lumped parameter Windkessel boundary conditions at each outlet for both groups

Windkessel parameters
SubjectOutlet arteryRp (dyne·s/cm5)C (105cm5/dyne)Rd (dyne·s/cm5)
RHDBrachiocephalic2071 ± 87912.0 ± 2.920,715 ± 8786
Left common carotid6369 ± 51884.6 ± 2.263,696 ± 51,878
Left subclavian8752 ± 75393.7 ± 2.087,526 ± 75,388
Descending thoracic231 ± 55100.7 ± 63.92313 ± 556
ControlBrachiocephalic2007 ± 118213.2 ± 7.020,079 ± 11,821
Left common carotid4766 ± 480612.2 ± 11.847,663 ± 48,064
Left subclavian5558 ± 62198.4 ± 7.955,586 ± 62,194
Descending thoracic260 ± 6387.3 ± 29.22607 ± 631
Windkessel parameters
SubjectOutlet arteryRp (dyne·s/cm5)C (105cm5/dyne)Rd (dyne·s/cm5)
RHDBrachiocephalic2071 ± 87912.0 ± 2.920,715 ± 8786
Left common carotid6369 ± 51884.6 ± 2.263,696 ± 51,878
Left subclavian8752 ± 75393.7 ± 2.087,526 ± 75,388
Descending thoracic231 ± 55100.7 ± 63.92313 ± 556
ControlBrachiocephalic2007 ± 118213.2 ± 7.020,079 ± 11,821
Left common carotid4766 ± 480612.2 ± 11.847,663 ± 48,064
Left subclavian5558 ± 62198.4 ± 7.955,586 ± 62,194
Descending thoracic260 ± 6387.3 ± 29.22607 ± 631

Note: Rp = proximal resistance; Rd = distal resistance; and C = capacitance.

As an initial pressure, we used estimated MAP values based on age and BMI from literature [40]. simvascular solves the Navier–Stokes equations and automatically applies the traction (no-slip) boundary condition on the surface of the vessel lumen. In addition, we assumed the blood to be a laminar Newtonian fluid with constant density (1.06 g/cm3) and viscosity (0.04 poise) using values from literature [39].

We ran each simulation for five cycles and confirmed that the simulation results converged by the fourth cycle. Simulations for each case were run on the simvascular Supercomputing Gateway, which uses XSEDE resources [41]. Each simulation took between 1.5 and 5.5 h to run. Results of the last cardiac cycle are presented in this section.

Quantification and Statistical Analysis of Hemodynamic Indices.

We assessed differences between inlet flow patterns by measuring flow asymmetry (Flowasym) and spatial velocity difference (ΔSV), using Eqs. (4) and (5), respectively
(4)
(5)

To measure flow asymmetry, Flowasym, within the inlet, we subtracted the maximum velocity coordinates, Vm, from the inlet centroid coordinates, Ic, and divided that distance by the maximum effective radius, R, of the inlet. We compared the inlet flow profile in subject-specific simulations to Womersley by calculating the spatial velocity difference. Mean ΔVD is calculated by the absolute velocity difference between matching node locations (ai and bi), then taking the sum of those values and dividing by the total number of nodes, n.

To estimate the effects of aortic valve lesions on the ascending thoracic aorta, we quantified time-averaged wall shear stress (TAWSS), OSI, and RRT for RHD and control subjects, including simulations using either subject-specific or Womersley flow profiles. We analyzed a region of the ascending aorta of consistent size across vessels of each subject that incorporated where we found maximum hemodynamic parameter values due to the influence of the aortic valve. This region was placed approximately in the same location for all subjects, a few millimeters above the inlet.

Fig. 3

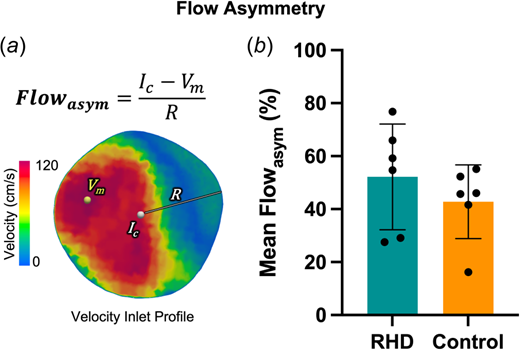

Blood flow asymmetry (a) at the inlet was measured for both groups at peak systole using subject-specific velocity profiles and (b) mean values were summarized. Flowasym = flow asymmetry; Ic = inlet centroid coordinates; Vm = maximum velocity coordinates; and R = radius.
Fig. 3
Blood flow asymmetry (a) at the inlet was measured for both groups at peak systole using subject-specific velocity profiles and (b) mean values were summarized. Flowasym = flow asymmetry; Ic = inlet centroid coordinates; Vm = maximum velocity coordinates; and R = radius.
Close modal
TAWSS quantifies the amount of drag on the vessel wall caused by blood flow over one representative cardiac cycle. It was estimated using Eq. (6), integrating wall shear stress magnitude at each node, WSS, over the cardiac cycle length, T
(6)
OSI is a dimensionless quantity that reveals the change of direction in WSS over time, modeled by Eq. (7). OSI can range from 0 to 0.5 where 0 represents uniform flow and 0.5 would indicate a 180deg change in direction in WSS (i.e., disturbed flow) [42]
(7)
As our final WSS-based parameter, we estimated RRT which is estimated using OSI and TAWSS values, as shown in Eq. (8). A high RRT would indicate that particles in the blood have a longer residence time near the wall
(8)

Statistical Analysis.

Statistical analyses were conducted on each group. Mean and standard deviations are represented in the tables and figures below. We used QQ plots to test for normality, then compared group means using paired and unpaired t-tests. A p-value of <0.05 was considered significant. All statistical analyses were performed with commercial software, prism (version 9.2; GraphPad Software, Inc., Boston, MA).

Results and Discussion

Flow Asymmetry.

We first examined the flow asymmetry of our subject-specific inlet velocity profile simulations. We did this by measuring the difference between the inlet centroid coordinates, Ic, and maximum velocity coordinates, Vm, at peak systole, as shown in Fig. 3(a). Comparing mean flow asymmetry values, we found no significant difference between RHD and control groups (Fig. 3(b)) although the RHD group mean is higher.

Fig. 4
Blood flow asymmetry visualized at the inlet of both RHD (n = 6) and control (n = 6) subjects at peak systole, with the maximum velocity and inlet centroid indicated by corresponding dots. Inlets are visualized at peak systole. Flowasym = flow asymmetry; Ic = inlet centroid location; and Vm = maximum velocity location.
Fig. 4
Blood flow asymmetry visualized at the inlet of both RHD (n = 6) and control (n = 6) subjects at peak systole, with the maximum velocity and inlet centroid indicated by corresponding dots. Inlets are visualized at peak systole. Flowasym = flow asymmetry; Ic = inlet centroid location; and Vm = maximum velocity location.
Close modal

In Fig. 4, each subject-specific simulation inlet is visualized at peak systole in two different views. Observing individual subject results, we see that RHD subjects N2, N3, and N4 have the highest flow asymmetry among both groups. In addition, if we examine other metrics listed in Table 2, we see that, again, RHD subjects N2, N3, and N4 all have left ventricular ejection fractions (LVEFs) outside of the normal range of 50–75% [43]. These results confirm the idea that aortic valve lesions can affect both left ventricular function and aortic blood flow.

Fig. 5

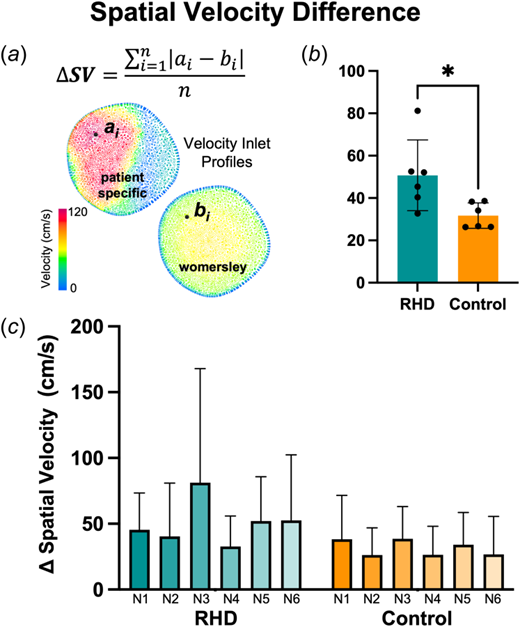

Mean ΔSV (a) measured by taking the absolute difference in velocity between subject-specific (ai) and Womersley (bi) inlet profiles at each node during peak systole and dividing by the total number of nodes (n). Mean ΔSV (b) shows significant differences between groups, with (c) each individual's ΔSV visualized below. ΔSV = spatial velocity difference; ai = subject-specific node; bi = Womersley node; and n = total number of nodes on inlet surface. *p<0.05.
Fig. 5
Mean ΔSV (a) measured by taking the absolute difference in velocity between subject-specific (ai) and Womersley (bi) inlet profiles at each node during peak systole and dividing by the total number of nodes (n). Mean ΔSV (b) shows significant differences between groups, with (c) each individual's ΔSV visualized below. ΔSV = spatial velocity difference; ai = subject-specific node; bi = Womersley node; and n = total number of nodes on inlet surface. *p<0.05.
Close modal

Observing the control group flow asymmetry, we qualitatively can conclude that velocity distribution is much more equal; however, we see that maximum velocity points are still not overlapping with the inlet centroid as they would in generic velocity profiles.

Subject-Specific to Womersley Comparison.

To quantify the spatial velocity profiles in a different way, we did a point-wise comparison by comparing each inlet node's velocity value at peak systole between Womersley and the subject-specific simulation parameters. Representative inlets in Fig. 5(a) show how the spatial velocity difference was calculated. In Fig. 5(b), we found that the mean ΔSV of the RHD group was significantly higher (p <0.05) than that of the control group. Qualitatively, we can see more variation between cases within the RHD group, in Fig. 5(c), with N3 having the highest difference.

Fig. 6

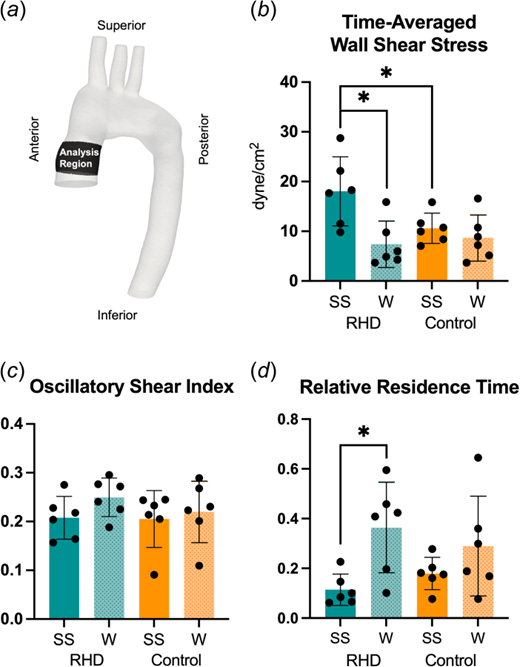

Panel (a) shows a representative analysis region in the ascending thoracic aorta for wall shear stress, oscillatory shear index, and relative residence time values. Significant differences in mean time-averaged wall shear stress (b) were found between subject-specific RHD and control groups, as well as subject-specific and Womersley RHD simulations. Mean oscillatory shear index (c) showed no significant differences between groups. Significant differences in relative residence time (d) were found between subject-specific and Womersley RHD simulations. SS = subject-specific; W = Womersley. *p<0.05.
Fig. 6
Panel (a) shows a representative analysis region in the ascending thoracic aorta for wall shear stress, oscillatory shear index, and relative residence time values. Significant differences in mean time-averaged wall shear stress (b) were found between subject-specific RHD and control groups, as well as subject-specific and Womersley RHD simulations. Mean oscillatory shear index (c) showed no significant differences between groups. Significant differences in relative residence time (d) were found between subject-specific and Womersley RHD simulations. SS = subject-specific; W = Womersley. *p<0.05.
Close modal

Wall Shear Stress, Oscillatory Shear Index, and Relative Residence Time.

We followed our inlet flow assessment by quantifying the effects of flow on the lumen wall. The objective for this analysis was to measure differences between the RHD and control groups, but also to measure differences between subject-specific and Womersley inlet velocity profile simulations. We summarized these values in Fig. 6 and Table 4, while values for each simulation case can be found in Supplemental Table 2 available in the Supplemental Materials on the ASME Digital Collection.

Table 4

Hemodynamic indices in the subjects and matched controls

RHD (n = 6)Control (n = 6)p value
LVEF (%)46.67 ± 15.6456.67 ± 6.710.181
ATA–LVOT (deg)170.13 ± 4.11166.80 ± 4.710.045
LVOT–LV (deg)190.57 ± 7.01181.85 ± 8.370.026
Flowasym (%)52.2 ± 19.9542.82 ± 13.920.367
TAWSSSS(dyne/cm2)18.04 ± 6.9610.60 ± 3.050.037
TAWSSW(dyne/cm2)7.42 ± 4.688.71 ± 4.610.641
OSISS0.21 ± 0.040.21 ± 0.060.936
OSIW0.25 ± 0.040.22 ± 0.060.355
RRTSS0.11 ± 0.060.18 ± 0.060.108
RRTW0.36 ± 0.180.29 ± 0.200.516
RHD (n = 6)Control (n = 6)p value
LVEF (%)46.67 ± 15.6456.67 ± 6.710.181
ATA–LVOT (deg)170.13 ± 4.11166.80 ± 4.710.045
LVOT–LV (deg)190.57 ± 7.01181.85 ± 8.370.026
Flowasym (%)52.2 ± 19.9542.82 ± 13.920.367
TAWSSSS(dyne/cm2)18.04 ± 6.9610.60 ± 3.050.037
TAWSSW(dyne/cm2)7.42 ± 4.688.71 ± 4.610.641
OSISS0.21 ± 0.040.21 ± 0.060.936
OSIW0.25 ± 0.040.22 ± 0.060.355
RRTSS0.11 ± 0.060.18 ± 0.060.108
RRTW0.36 ± 0.180.29 ± 0.200.516

Note: LVEF = left ventricular ejection fraction; ATA = ascending thoracic aorta; LV = left ventricle; LVOT = left ventricular outflow tract; Flowasym = flow asymmetry; SS = subject-specific; W = Womersley; TAWSS = time averaged wall shear stress; OSI = oscillatory shear index; and RRT = relative residence time.

As mentioned previously, time-averaged wall shear stress provides an estimation of drag caused by blood flow on the wall of the vessel lumen during one cardiac cycle. This metric can be useful for understanding the effect of the inlet flow on the wall in the ascending region of the thoracic aorta. We plotted the mean TAWSS among both groups and both simulation types (i.e., subject-specific and Womersley). We found that mean TAWSS of the subject-specific inlet simulations was significantly higher than the subject-specific inlet control group (p <0.05) as well as the Womersley RHD group (p <0.05, Fig. 3). Due to the aortic stenosis and regurgitation present among the RHD subjects, we can assume that the resulting flow asymmetry would also increase TAWSS values as higher velocities are observed near the wall. Therefore, we can anticipate significantly higher TAWSS in RHD subjects with aortic valve lesions. However, the Womersley simulations fail to reveal these differences and even show significantly lower values when comparing to subject-specific simulations within the RHD group (See Supplemental Fig. 1 available in the Supplemental Materials). Therefore, these findings highlight the importance of imposing a subject-specific velocity distribution when analyzing the ascending region of the thoracic aorta.

We also analyzed oscillatory shear index and relative residence time index to further our understanding of the hemodynamic effects from the valvular lesions. We found no significant difference in mean OSI values between simulation type or between RHD subjects and controls. Although we initially expected that the mean OSI of the RHD group would be higher than that of the control group, the lack of difference may be explained by averaging regions of high and low OSI together [33,44]. We also did not find any significant differences in RRT values between either RHD and control groups. RRT is a less important metric when it comes to RHD as it has been used as an indicator for atherosclerosis susceptibility and thrombosis formation [27,45]. However, we felt it was an important metric to compare simulation results between subject-specific inlet profiles and Womersley profiles for potential application to other aortopathies. We anticipated that RRT would be significantly lower in the RHD group because of the increased velocity near the walls. However, we did find a significant difference in mean RRT between subject-specific inlet simulations and Womersley inlet simulations (p <0.01) among the RHD group. This finding demonstrates the substantial influence inlet boundary conditions can have on hemodynamic metrics. These differences are also demonstrated when we examine individual subjects. We see that from the subject-specific simulations, RHD subjects N2 and N3 have the lowest RRT, whereas the Womersley simulations do not show that N2 and N3 have the lowest values. Taken together, TAWSS, OSI, and RRT can all provide insights into the effect of valve lesions on the ascending aortic wall when using subject-specific velocity inlets.

Inlet Angle Assessment.

To supplement our CFD analysis and characterize the relationship between the ATA, aortic valve, and left ventricle, we quantified the angles between them. Figures 7(a) and 7(c) show representative images of how the angles were calculated with the summarized data in Figs. 7(b) and 7(d). We found that the angle between the left ventricle and LVOT is significantly larger in RHD patients for both the total subjects and the study cohort (p <0.01; p <0.05). These findings are similar to Roule et al. which found that patients with AR had significantly greater ATA-LV angles and noted that patients with moderate to severe AR following transcatheter aortic valve replacement (TAVR) have increased one-year mortality and heart failure [38]. Despite their significant findings, we found it more relevant to measure the LVOT-LV angle since flow from the LV is first affected by the LVOT. To investigate further within the RHD group (n =43), we divided the subjects into groups with moderate to severe mitral regurgitation (MR), mitral stenosis (MS), AR, and AS (2) and the resulting groups of mild (<2) or none present. No significant differences were found between MS severity nor AS severity groups. We also did not find a significant difference between AR severity (p =0.21), but did find that patients with moderate to severe MR have significantly larger LVOT-LV angles than those with mild or no MR (p <0.05). These angle differences may be important when considering TAVR for RHD patients and the performance of the valves. One recent study also considered the effect of aortic arch geometry on prosthetic valves [46]. They evaluated aortic pressure differences post-TAVR with varying aortic geometries and found elevated pressure differences in those with greater curvatures, which may compromise valve performance. All of these findings suggest that rheumatic heart disease has a complex effect on the cardiovascular system, with valve lesions that affect both left ventricular function and aortic hemodynamics.

Fig. 7

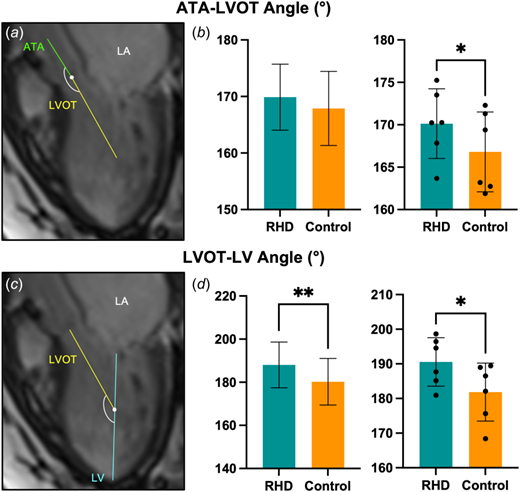

Panels (a) and (c) show representative sagittal (three-chamber view) cine images of the LV, left atrium, and ATA with overlaid ATA-LVOT and LVOT-LV angles, respectively. A significant difference in ATA-LVOT angles (b) was found in the age- and sex-matched subject cohort, while significant differences in (d) LVOT-LV angles were found in both the total subject analysis (RHD: n = 43, control: n = 28) and within the study cohort. *p<0.05, **p<0.01.
Fig. 7
Panels (a) and (c) show representative sagittal (three-chamber view) cine images of the LV, left atrium, and ATA with overlaid ATA-LVOT and LVOT-LV angles, respectively. A significant difference in ATA-LVOT angles (b) was found in the age- and sex-matched subject cohort, while significant differences in (d) LVOT-LV angles were found in both the total subject analysis (RHD: n = 43, control: n = 28) and within the study cohort. *p<0.05, **p<0.01.
Close modal

Limitations and Future Directions.

There are some limitations to this study that should be noted. One limitation is the rigid-wall assumption in the simulations. Because we aimed to create a feasible CFD method through quick and affordable image acquisitions, we were not able to obtain wall deformation information. Furthermore, incorporating wall deformation would increase computational costs. However, modeling the vessel wall using a hyperelastic model, such as the one derived by Raghavan and Vorp [47], could allow the wall to expand and contract with pressure changes improving our estimation of hemodynamic metrics near the wall including TAWSS and OSI. These metrics may be overestimated when using rigid walls [48]. Since the effect of rigid walls is consistent among simulations and we were focusing mainly on comparisons between groups, the actual values are of less importance. Another limitation of this study is that the custom code to impose the subject-specific inlet boundary conditions does not account for vessel translation and is mapped to a stationary inlet. Although we ensured that the PC-MRI data were adequately overlayed at maximum systole, accounting for vessel translation throughout the cardiac cycle would further improve simulation accuracy, particularly in the diastolic phase [31]. One study even incorporated valve geometry into the model and compared the plug velocity profile to subject-specific profiles in the LVOT. The authors did not observe significant differences in WSS, arguing that subject-specific profiles are not needed [49]. However, without access to subject-specific valve geometry and software to model it, their presented method is not feasible. Moreover, our WSS findings do not agree with theirs as we did find significant differences between methods, which suggests that subject-specific is important.

Based on the results of our study and the limitations, there are key future works to be mentioned. First, accounting for vessel translation within the code may improve the accuracy of simulations using subject-specific inlets. In addition, the method would be more accessible and clinically translatable if subject-specific velocity imposition could be directly incorporated within the simvascular software. To further validate our CFD approach using 2D PC-MRI, it could be useful to simultaneously collect 4D flow MRI. In addition to having lower temporal resolution [50], it is less clinically translatable due to system requirements, scan times, and advanced techniques, but could be used in a validation study to compare aortic flow downstream to CFD results from our current method.

Outside of these small improvements, extending this method to other diseases may provide valuable insights. Specifically, there is a need to determine whether patients with bicuspid aortic valve (BAV) develop dilated ascending thoracic aortas because of genetic causes or abnormal hemodynamic causes [51]. Patients with BAV often have regions of high WSS due to the asymmetric blood flow caused by the aortic valve [52] and may even develop ascending thoracic aortic aneurysms. Nightingale et al. recently showed strong evidence that aortic biomechanics are influenced by hemodynamics and that regions of elevated WSS have low stretch ranges in the vessel wall tissue [53], yet we do not see dilation of the ascending aorta in RHD patients as we do in BAV, despite having elevated WSS regions. Comparing RHD patients with similar aortic stenoses and WSS patterns may help elucidate the level of biomechanical effect the hemodynamics are having on aortic wall changes. A second direction could be to study the progression of RHD, which may help reveal any geometrical changes occurring in the LV or aorta, which may adversely effect treatment outcomes. The method presented here could be applied to a small animal study using a mouse model such as the one established by Galvin et al. [54], acquiring CMR data at multiple time points.

Conclusion

The hemodynamics of patients with aortic valve lesions due to RHD differ depending on the severity of stenosis and regurgitation, function and angle of left ventricle, and potentially other biomechanical factors. It is imperative to use subject-specific inlet velocities to model flow in the ascending thoracic aorta in patients with altered aortic valve function. Imposing subject-specific inlets revealed a significant increase in TAWSS and a decrease in RRT, while imposing a Womersley profile did not reveal these differences. We supplemented this hemodynamic analysis by providing simple 2D angle estimations of the ATA, LVOT, and left ventricle that revealed significant differences between RHD and non-RHD subjects, as well as differences between MR severity groups. Exposing differences in these metrics may help to stratify risk and personalize pre-operative information for RHD cases. Furthermore, we demonstrated how to accomplish this CFD approach through routinely collected CMR scans at a relatively low cost and faster acquisition, expanding the availability of this type of analysis for more patients.

Funding Data

  • National Science Foundation (NSF) (Grant No. 1829436; Funder ID: 10.13039/100000001).

  • South African Medical Research Council (Funder ID: 10.13039/501100001322).

  • Medical Research Council UK (Funder ID: 10.13039/501100000265).

  • Lily and Ernst Hausmann Trust.

Data Availability Statement

The datasets generated and supporting the findings of this article are obtainable from the corresponding author upon reasonable request.

Acknowledgment

The authors thank Alejandro Quintero Rendon from Universidad Santiago de-Cali for assisting with image segmentation and Joseph Muskat from Purdue University for computational guidance. We also acknowledge the funding support for HLC provided by IIE-GIRE. We also thank the patients with RHD and healthy control subjects who volunteered to participate in this study.

Nomenclature

AR =

aortic regurgitation

AS =

aortic stenosis

ATA =

ascending thoracic aorta

CFD =

computational fluid dynamics

CMR =

cardiovascular magnetic resonance

HASTE =

half-Fourier acquisition single-shot turbo spin echo

LVEF =

left ventricular ejection fraction

LVOT =

left ventricular outflow tract

MR =

mitral regurgitation

MS =

mitral stenosis

OSI =

oscillatory shear index

PC-MRI =

phase contrast magnetic resonance imaging

RHD =

rheumatic heart disease

TAVR =

transcatheter aortic valve replacement

TAWSS =

time-averaged wall shear stress

ΔSV =

spatial velocity difference
